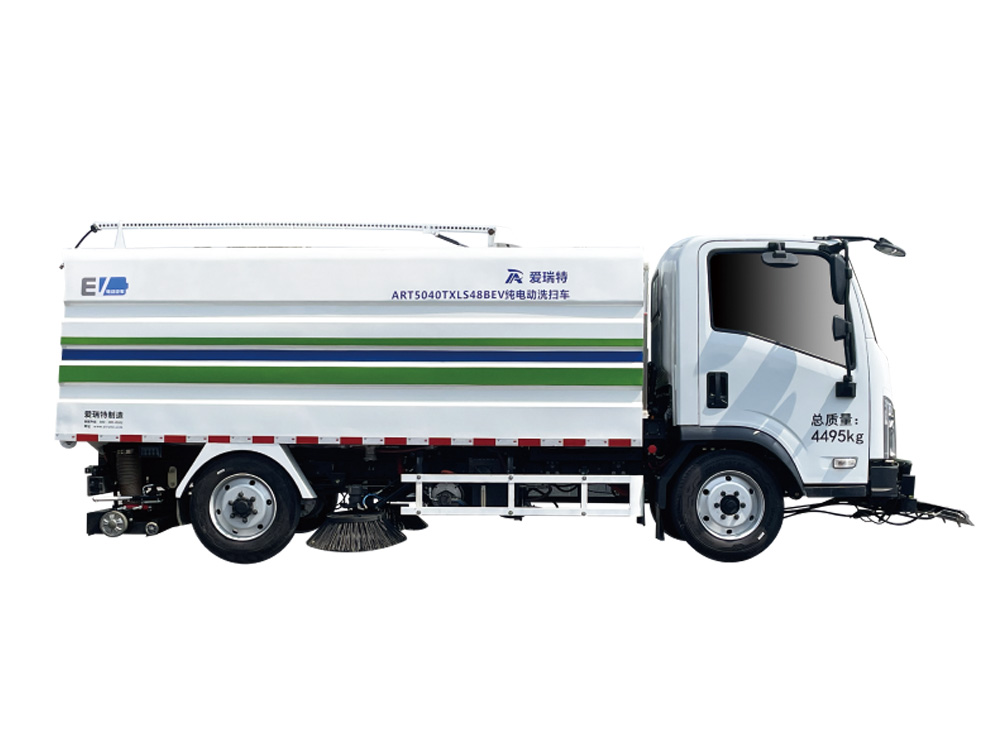

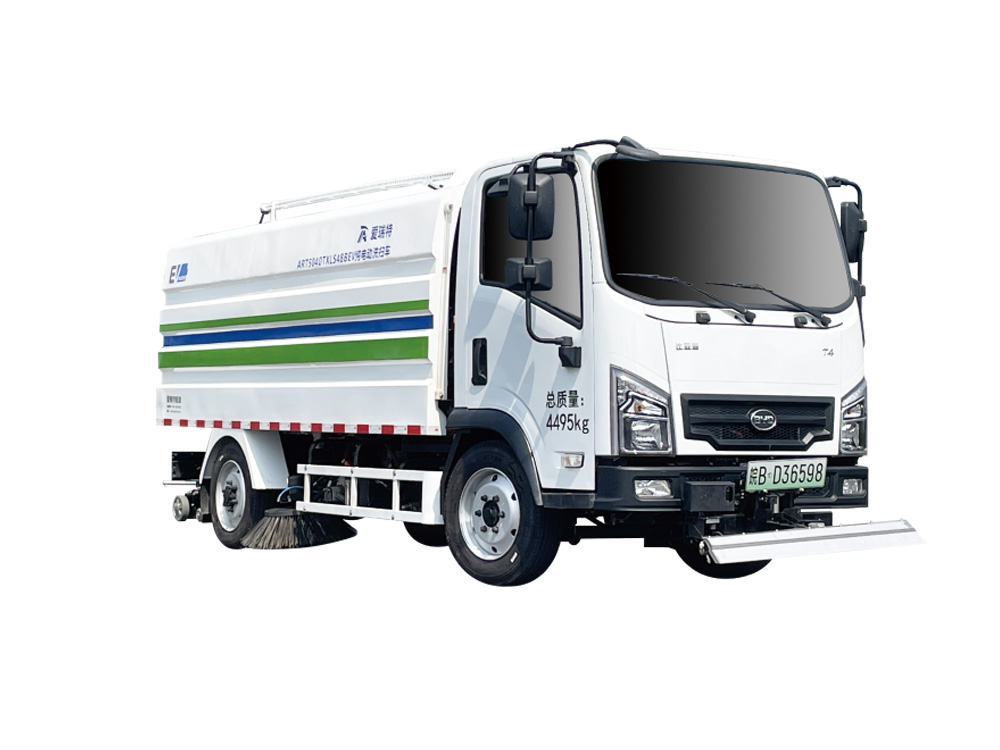

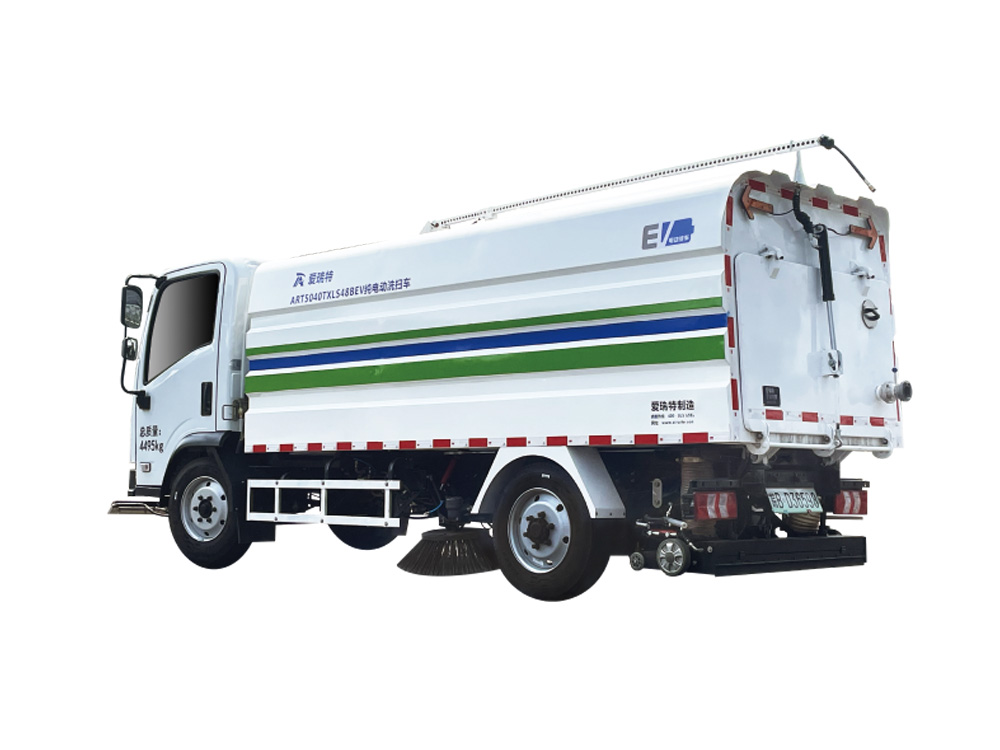

ART5041TXSS48BEV The pure electric washing and sweeping vehicle is mainly used for the general sweeping operation of main roads and other roads. It integrates the functions of sweeping and high-pressure washing. It can quickly clean the fallen leaves, stones, sand dust, white garbage, etc. and dump the garbage.
-Box body: high-quality high-strength steel plate, the box body is arc-shaped and beautiful;

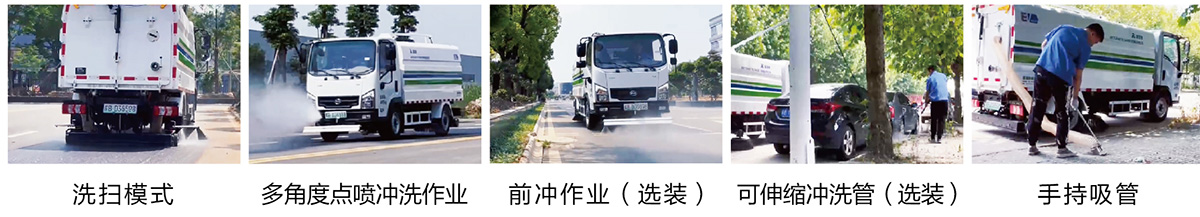

-Sweeping system: the sweeping plate and spray bar have the functions of automatic avoidance and automatic recovery in case of obstacles, and the rear side is brushed with 650 × 2+1490mm washing and sweeping disc + dust reducing nozzle + hand-held straw (optional) + side spray bar. There are two operation modes: "full washing and sweeping" and "full sweeping". The effect is good, and the cleaning rate reaches 98%;
-Cleaning system: AR high-pressure water pump and DC motor cooperate with hand-held spray gun, which has the function of cleaning and removing small advertisements in non motorized lanes and streets. At the same time, it has the function of multi angle point flushing, and can flush garbage cans without getting off the vehicle;
-Front flushing mechanism: the front flushing mechanism (optional) has the functions of road surface flushing, fixed-point flushing, side flushing and other road maintenance functions. One vehicle can be used for multiple purposes, saving costs;
-Dustbin self-cleaning: the dustbin is equipped with a self-cleaning spray rod, which is threaded in the dustbin to adjust the spray angle, and the nozzle is easy to replace;
Serial number | Entry name | Company | Parameter |
1 | Chassis model / brand | / | SH1047ZFEVNZ8/Leap forward |
2 | Total mass | kg | 4495 |
3 | curb weight | kg | 3995，4080 |
4 | wheelbase | mm | 3308 |
5 | Approach angle / departure angle | ° | 20/11,13/11 |
6 | Battery brand | / | Ningde times (lithium iron phosphate) |
7 | Battery Specification | V/Ah | 566.72V/173Ah |
8 | Endurance mileage | km | 406（Isokinetic method） |
9 | Maximum speed | km/h | 90 |
10 | Maximum climbing gradient | % | 20 |
11 | Minimum turning radius | m | 7 |
12 | High pressure pump flow | L/min | 50 |
13 | High pressure pump pressure | Mpa | 0-15 |
14 | Rated power of water pump | kw | 11 |
15 | Front flushing width | m | ≥1.5（Optional） |
16 | ★Volume of garbage can | m3 | 3 |
17 | Volume of clean water tank | m3 | 2 |
18 | Dimensions | mm | 5980*1796*2285 6390*1796*2540（Optional forward stroke） |
